Deep hole drilling and boring machine TK2150/TK2250/TK2180 series

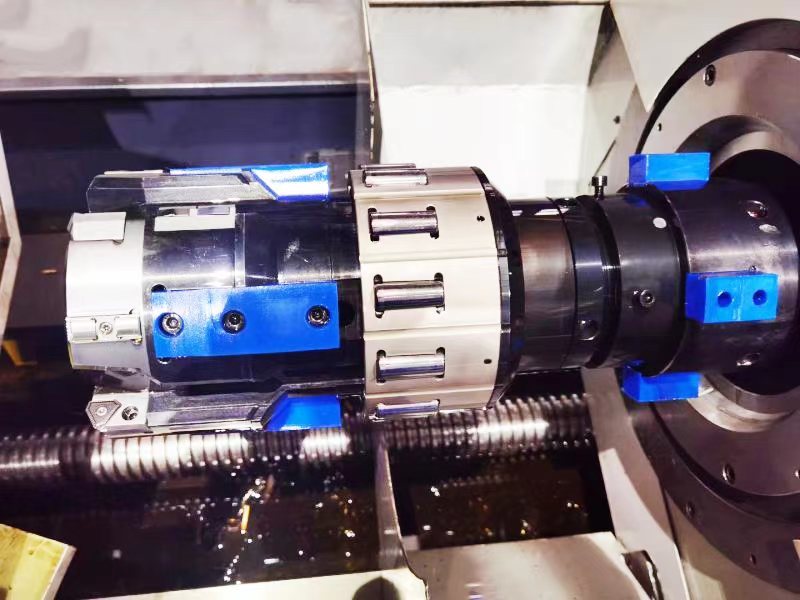

The machine tool can complete the boring, expansion, rolling and packing processing of large diameter heavy parts. Workpiece rotation and tool feeding during machining. Boring using the front (bedside end) discharge of cutting fluid, cutting process, the process of waste chips, need to be equipped with special set tool, knife rod and special work clip.

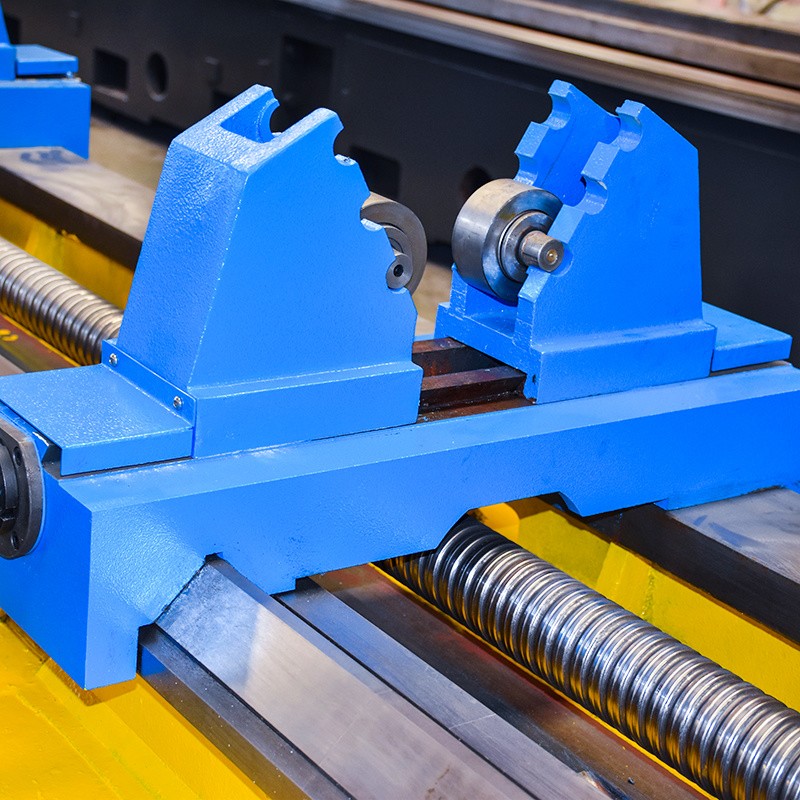

The machine tool mainly includes bed body part, bedside box, card tray body, mop plate into the feed system, feed box, oil illuminator, cooling part, dust removal device, working center frame, hydraulic system, etc. The machine tool can be flexibly selected according to the actual needs, with a wide range of application.
The machine tool can complete the boring, expansion, rolling and packing processing of large diameter heavy parts. Workpiece rotation and tool feeding during machining. Boring using the front (bedside end) row of cutting fluid, cutting process: the process of discharge chips, need to be equipped with special set tool, knife rod and special fixture.
TK2250 Specification of the deep-hole drilling and boring machin
Machine tool characteristics
1. Processing accuracy (≤0.03mm) and high finish (≤Ra0.2-0.8).
2. Can process the two ends of the small middle large inner hole.
3. The inner hole processing allowance can reach 12.5mm on one side.
4. Multi-step inner hole can be processed.
5. Can process long inner hole cutting process.
TK2250 Specification of the deep-hole drilling and boring machine
TK2250/TK2250 Outline size of the deep-hole drilling and boring machine tool
