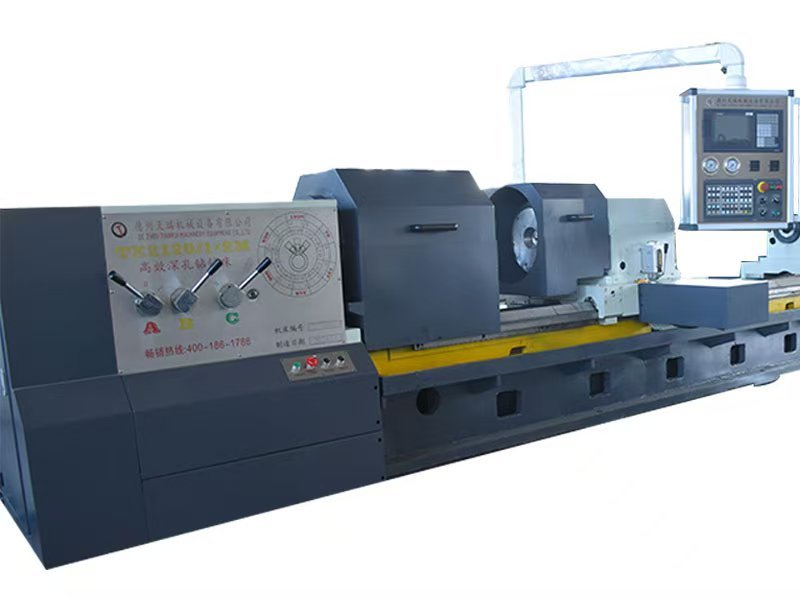

Deep hole drilling and boring machine TK2135/TK2140 Series
The machine tool is specialized in processing cylindrical deep hole workpiece equipment, such as the spindle of processing machine tool, all kinds of mechanical hydraulic cylinders, cylinder, cylindrical hole blind hole and step hole. The machine tool can not only undertake drilling, boring, but also can be rolling processing, drilling using the internal discharge method.
Machine tool body rigidity is strong, good precision retention. The spindle speed has a wide range, and the feed system is driven by AC servo motor, which can meet the needs of various deep hole processing processes. The illuminator (oil pressure head) and workpiece are tightened by hydraulic device, and the instrument display is safe and reliable.
The machine tool is a series of products, but also according to the user needs to provide a variety of deformation products.
The machine tool mainly has bed body part, bedside box, card tray body, mop plate into the feed system, feed box, oil illuminator(oil pressure head), cooling part, dust removal device, working center frame, hydraulic system, etc. The machine tool can be flexibly selected according to the actual needs, a wide range of application.
According to the working situation, you can choose the following several working forms
1.The workpiece rotation, tool rotation, and reciprocating feed movement
2.The workpiece rotation, the tool does not rotate and reciprocating to the movement
3.The workpiece does not rotate, tool rotation and reciprocating movement.
Machine tool use and processing case
Suitable for all kinds of hydraulic cylinder, main shaft hole, cylinder hole, cooling hole processing, suitable for large quantities or small batch production.
Machine tool characteristics
1. Processing accuracy (≤0.03mm) and high finish (≤Ra0.2-0.8).
2. Can process the two ends of the small middle large inner hole.
3. The inner hole processing allowance can reach 12.5mm on one side.
4. Multi-step inner hole can be processed.
5. Can process long inner hole cutting process.
Deep hole machine tool TK2135/TK2140 Specifications and performance
