Deep hole single shaft gun drill

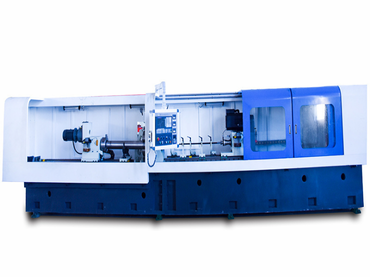

Tianrui single axis CNC deep hole drill (ZK2103) is a kind of high efficiency, high precision and high automation. Using the discharge chip drilling method (gun drilling method), it can replace the machining accuracy and surface roughness that generally requires drilling, expansion and hinge process to be achieved by drilling through a continuous drilling. Tianrui single-axis CNC deep hole gun drill using digital control system control, not only has the single movement function, it also has the function of automatic circulation. Therefore, not only suitable for small batch processing, especially suitable for the processing requirements of mass production. It can not only drill through holes, but also process blind holes or step holes, and can also process eccentric holes and inclined oil holes with special tooling.
Machine tool characteristics
1.High machining accuracy (0.02), high finish (Ra0.8-1.6).
2.The machining efficiency is 20 times that of traditional machine tools.
3.The machine tool is automatically controlled by the CNC program and is suitable for mass production.
4.The clip workpiece is simple, using two cone plate compact structure, high positioning accuracy, coaxial 0.02, can also use V-type iron clip.
Processing efficiency comparison
Technical parameters of ZK single-axis gun drilling series
