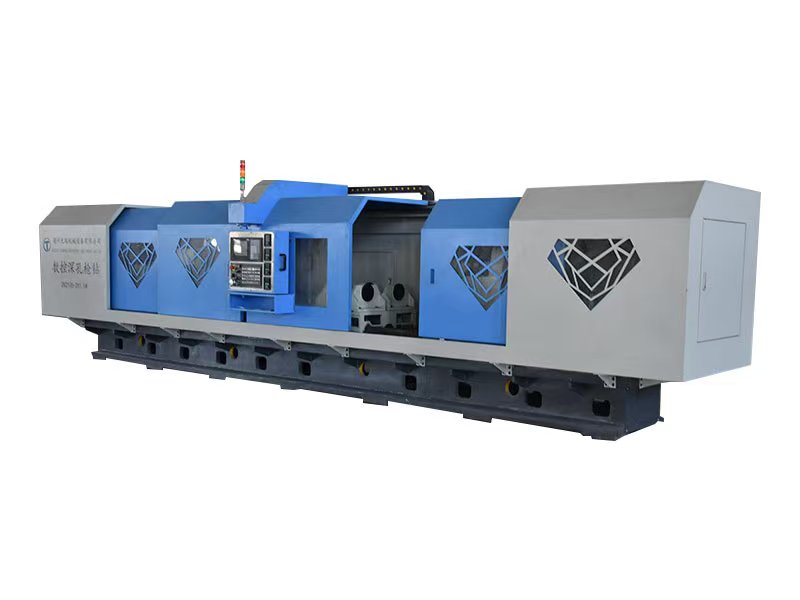

Deep hole double shaft gun drill
Tianrui double-axis gun drilling machine (ZK2102-2/ZK2108-2) is a special machine tool for processing multiple holes at the same time. It adopts the processing technology of tool rotation feeding and workpiece fixed. It can also be processed by dual power methods such as workpiece and tool simultaneous rotation and tool feeding. It can also drill holes on the end face of the workpiece and is particularly suitable for drilling center holes with angles by rotating the worktable.
Suitable for all kinds of parts of the high-efficiency deep hole processing
Machine tool characteristics
1.The bed and box are cast by high quality cast iron with good rigidity and stability.
2.There is no need to return the tool during drilling the deep hole.
3.CNC control system control, high degree of automation.
4.The feed movement is driven by AC servo motor, ball screw auxiliary drive, but no pole speed regulation.
5.Using the sliding guide rail, smooth running at low speed, no crawling
6.Drilling pipe box spindle can have no polar variable speed.
7.Spindle bearing and guide rail surface, etc.
8.The high voltage cooling system adopts motor driven gear pump and immersion oil temperature controller.

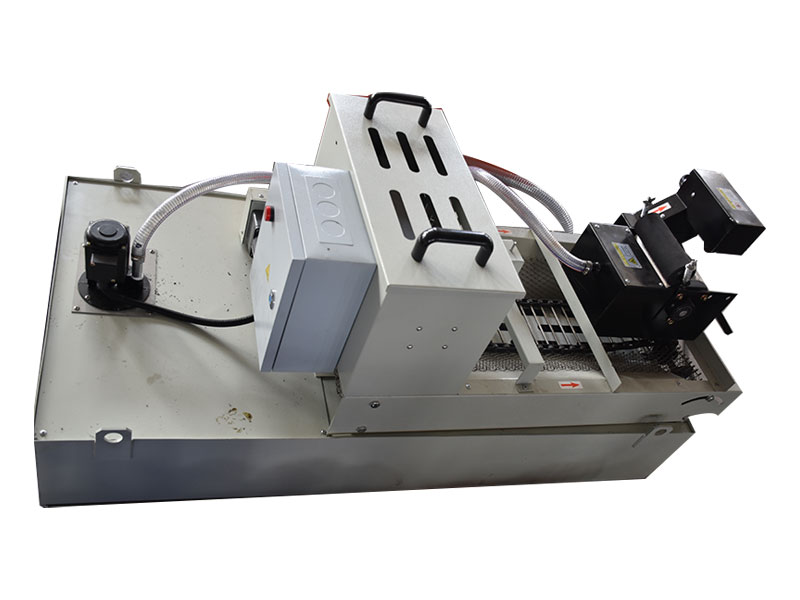

9.Automatic dust removal level was used to eliminate the chips.
10.The machine tool adopts the fully enclosed protection form, convenient observation, the overall beautiful.
11.With a variety of automatic monitoring devices.
ZK2103/ZK2105/ZK2108 technical parameters
